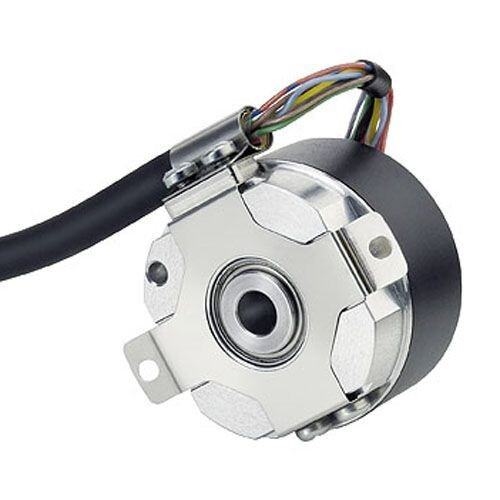

Note: The image shown represents the product series. The actual part number may differ in appearance depending on the selected configuration.

ACURO AD35/0022AF.0RBIB-B5 Absolute Encoders

Availability:Quote Only
Lead time:10 Days

Match Code:AD35/0022AF.0RBIB-B5
Item Number:0541491

Shortest absolute encoder in the world
Mounting depth 23.65 mm
8mm hub shaft
Resolution up to 22 bits single-turn
+120°C operating temperature
10,000 rpm in continuous operation
Plastic housing
BiSS or SSI interface
Sinewave 1 Vpp
500 kHz bandwidth

Request a Quote

0541491 | AD35/0022AF.0RBIB-B5 | AD35 Series Absolute Encoders
