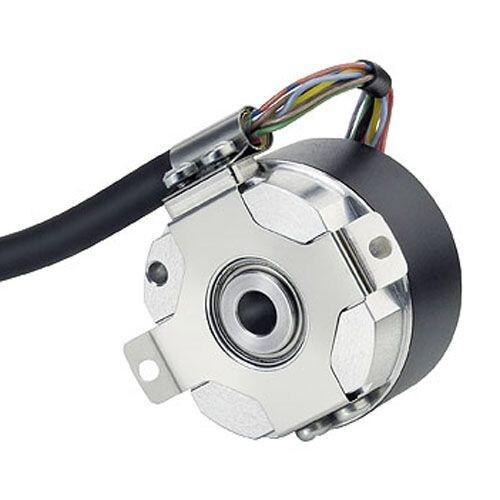

Note: The image shown represents the product series. The actual part number may differ in appearance depending on the selected configuration.
ACURO AD35/0013AF.0RSGA Absolute Encoders
- Availability:Quote Only
- Lead time:10 Days
- Match Code:AD35/0013AF.0RSGA
- Item Number:0541661
- Shortest absolute encoder in the world
- Mounting depth 23.65 mm
- 8mm hub shaft
- Resolution up to 22 bits single-turn
- +120°C operating temperature
- 10,000 rpm in continuous operation
- Plastic housing
- BiSS or SSI interface
- Sinewave 1 Vpp
- 500 kHz bandwidth
