Encoder Mounting

Examples of flanges

Overview of flanges for

Flange Mounting Examples

Rotary encoders with a clamping flange

The rotary encoders with a clamping flange offer the following fitting options:

  • using various flange adapters (see accessories)
  • the clamping flange itself
  • the fastening threads on the front
  • or using a mounting bracket (see accessories).

The rotary encoder housing is centered on the clamping flange.

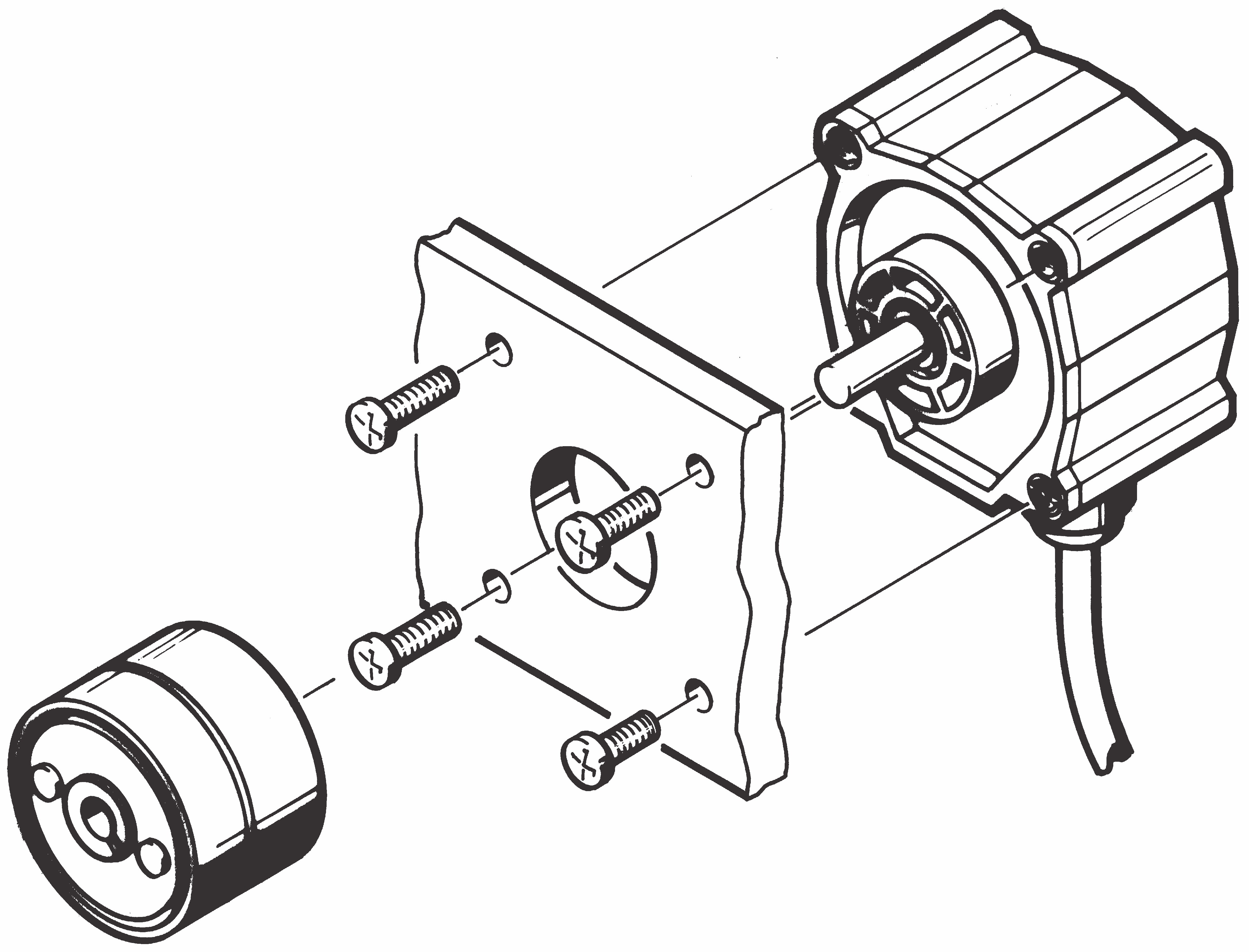

Illustration of Mounting Encoder with Flange

Rotary encoders with a synchronous flange

Rotary encoders with a synchro flange offer two mounting options:

  • using the synchro flange and three eccentric fastening elements (see accessories)
  • or using the fastening threads on the front.

The rotary encoder is centered using the centering collar on the flange.

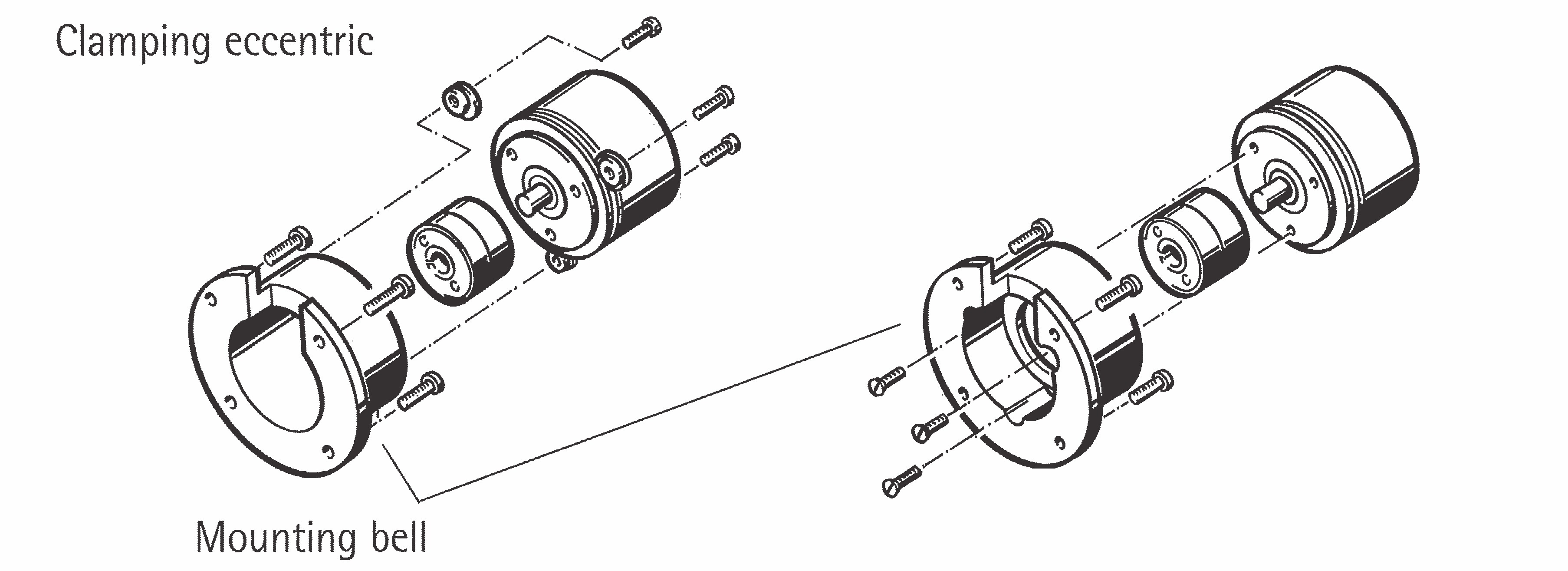

Illustration of Rotary Encoder with Synchronized Flange Mount

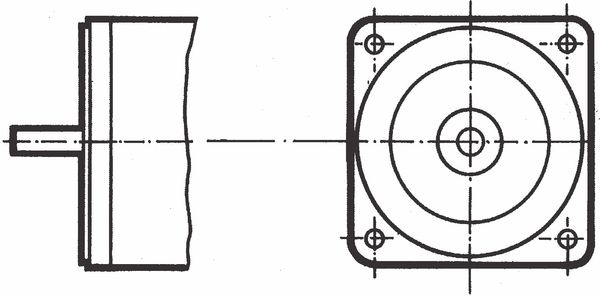

Rotary encoders with a square flange

Rotary encoders with a square flange offer two mounting options:

  • using the continuous fastening thread for front or rear wall mounting
  • or using a fastening bracket.

The rotary encoder is centered using the centering collar on the flange.

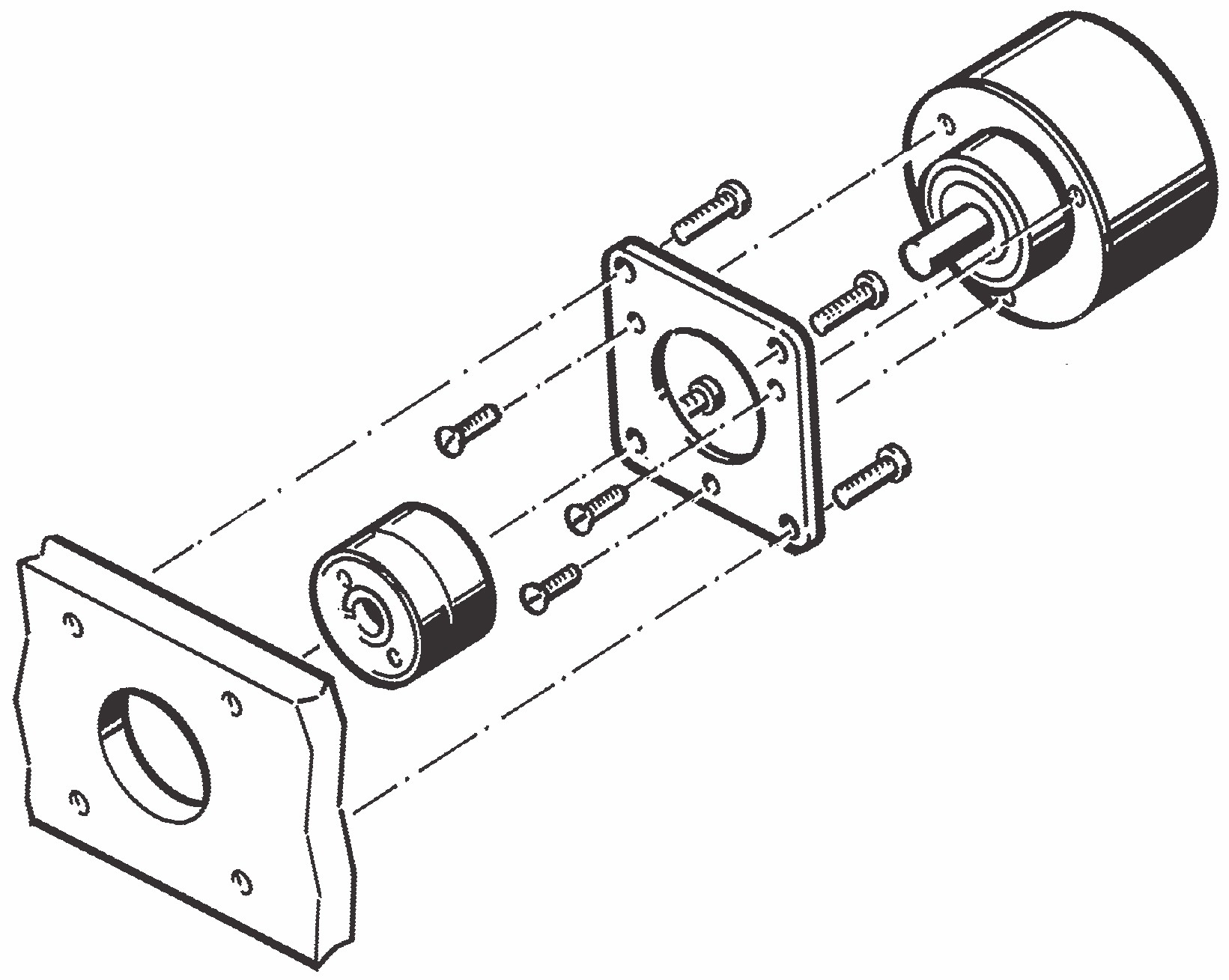

Illustration of Mounting Encoder with Flange

Rotary encoders with a round flange

Rotary encoders with a round flange offer two mounting options:

  • using the fastening thread on the front side
  • or using a fastening bracket.

The rotary encoder is centered using the centering collar on the flange.

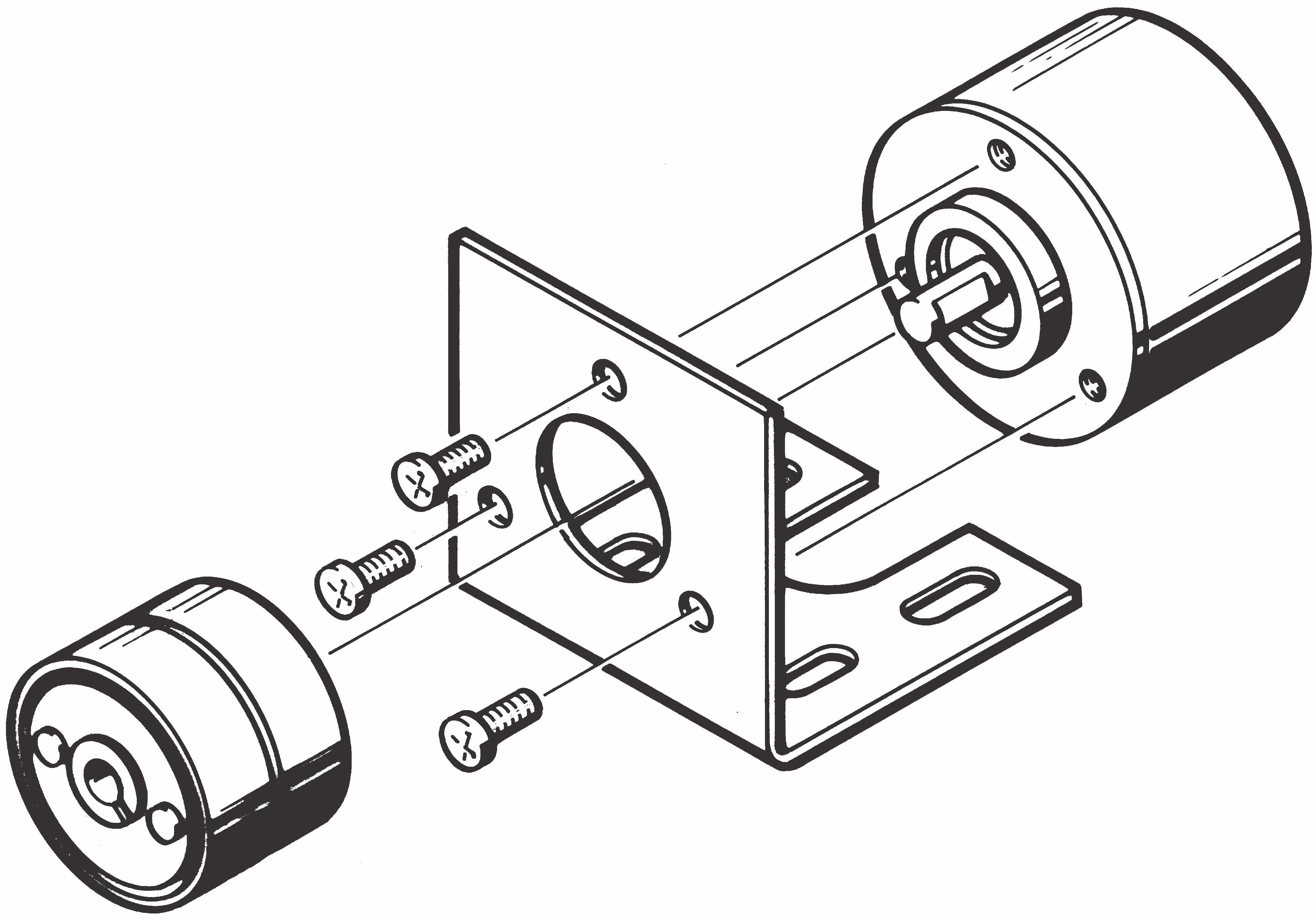

Illustration of Mounting Encoder with Bracket

Rotary encoders with a hollow shaft (RI 58-D / G)

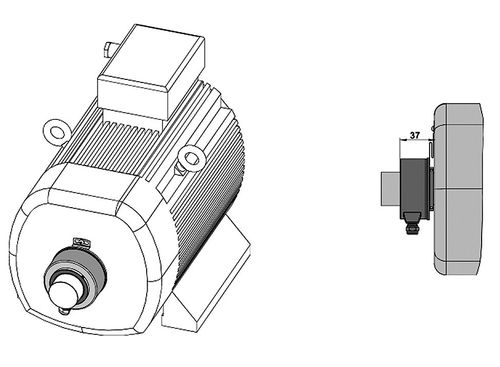

Illustration of AC Motor

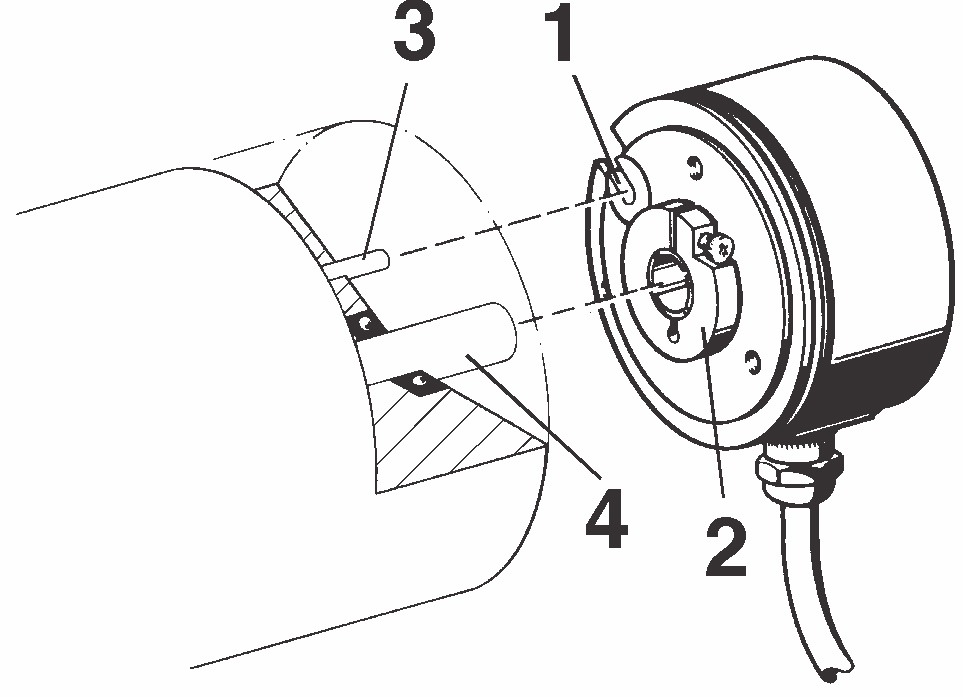

Fitting the variant F or D (clamping shaft)

  1. torque spring
  2. clamping ring with a Phillips screw (with cross-shaped grooves)
  3. cylinder pin and
  4. drive shaft

Fitting the variant E (end shaft)

  1. torque spring
  2. O-Ring
  3. cylinder pin
  4. drive shaft with threaded drilled hole
  5. M4-size screw, with a spring washer and
  6. cover cap

Rotary encoders with a hollow shaft (RI76)

Hengstler RI58-D / RI58TD Incremental Rotary Encoder

Motor rotary encoder with a hollow shaft (E9)

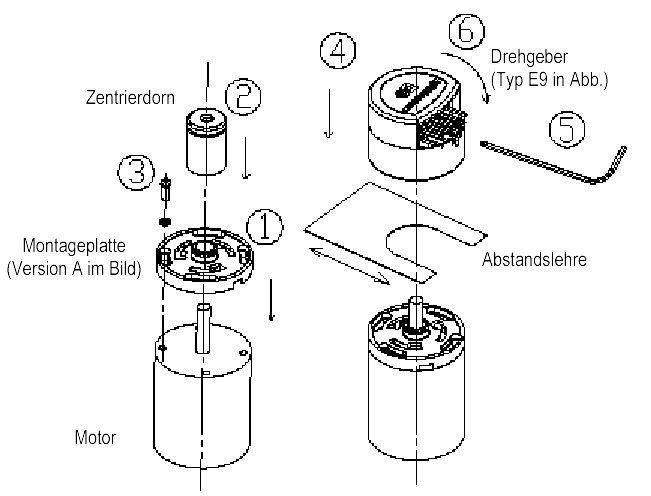

Image Describes the Assembly of a Rotary Encoder

  1. Place the mounting plate on the motor end shield (bearing plate).
  2. Push the centering pin through the motor shaft and use it to centre the mounting plate.
  3. Screw the mounting plate tight and remove the centering pin.
  4. Place the rotary encoder on the mounting plate without securing it in place. The locking lugs must be inserted into the openings in the base plate. Insert the distance gauge from the side opposite the connector plug between the base plate and the rotary encoder.
  5. Press the code disk towards the motor and at the same time tighten the grub screw in the encoder shaft.
  6. Engage the rotary encoder housing by turning it clockwise (bayonet lock)

  • Rotary encoders with a solid shaft

    • The shaft-side coupling of the rotary encoders with a solid shaft is secured with a coupling.

    The coupling compensates for axial movements and misalignments between the rotary encoder and the drive shaft, thereby avoiding excessive bearing loads on the rotary encoder shaft.
