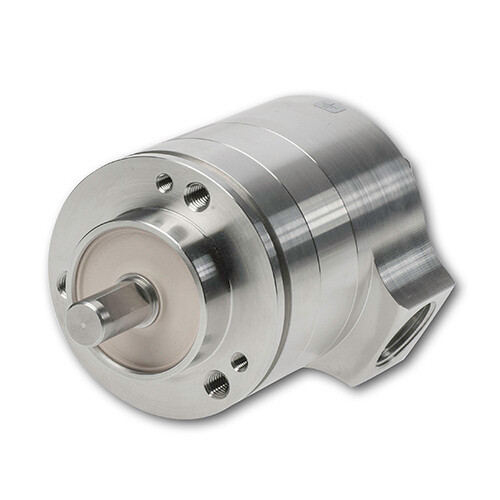

Note: The image shown represents the product series. The actual part number may differ in appearance depending on the selected configuration.

ACURO AX65/1612EL.72SB2 Absolute Encoders

Availability:Obsolete
Lead time:54 Days
This product is obsolete. For replacement options or other alternatives please contact our technical support:

Match Code:AX65/1612EL.72SB2
Item Number:0569022

ATEX and IECEx certification for Gas, Dust and Mining
Most compact design of its class: 59 mm housing diameter / 70 mm mounting depth
Extreme robust design
300 N axial and radial load
200 g shock resistance / 30 g vibrations resistance
Protection class up to IP66 / IP67
Easy field installation
terminal box with cage clamp technology
Interfaces: SSI and CANopen

0569022 | AX65/1612EL.72SB2 | AX65 Series Absolute Encoders
