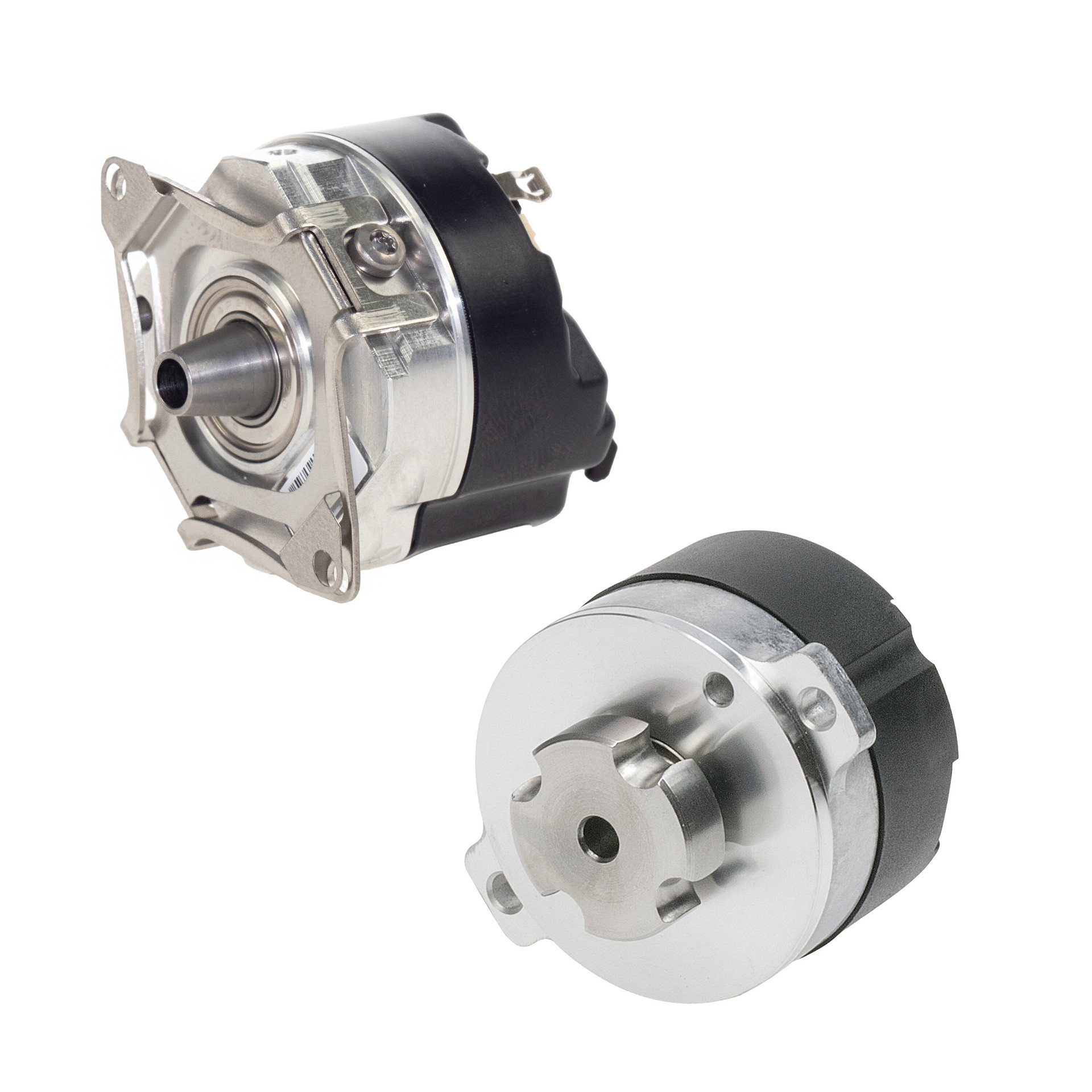

ACURO AD37_KTR and 1x3_02.jpg

Note: The image shown represents the product series. The actual part number may differ in appearance depending on the selected configuration.

ACURO AD37/0020GV.0T4W9 Absolute Encoders

Availability:Available to Buy
Lead time:5 Days

Match Code:AD37/0020GV.0T4W9
Item Number:0571013

€816.27

Singleturn and Multiturn Encoder for high performance motion control
Encoder for Functional Safety applications (SIL2 PLd, SIL3 PLe, category 3)
Single Cable Solution with ACURO® link interface 4 wire applications
Most compact absolute multiturn encoder of its class (Mounting depth: 29 mm)
Motor winding temperature sensor input
Resolution: up to 20 Bit ST + 12 Bit MT
Wide operating temperature range (-40°C ... +115°C)
Up to 12,000 rpm continuous operation
Encoder data stored in Electronic Data Sheet (EDS) inside encoder

Request a Quote

0571013 | AD37/0020GV.0T4W9 | AD37 Series Absolute Encoders
