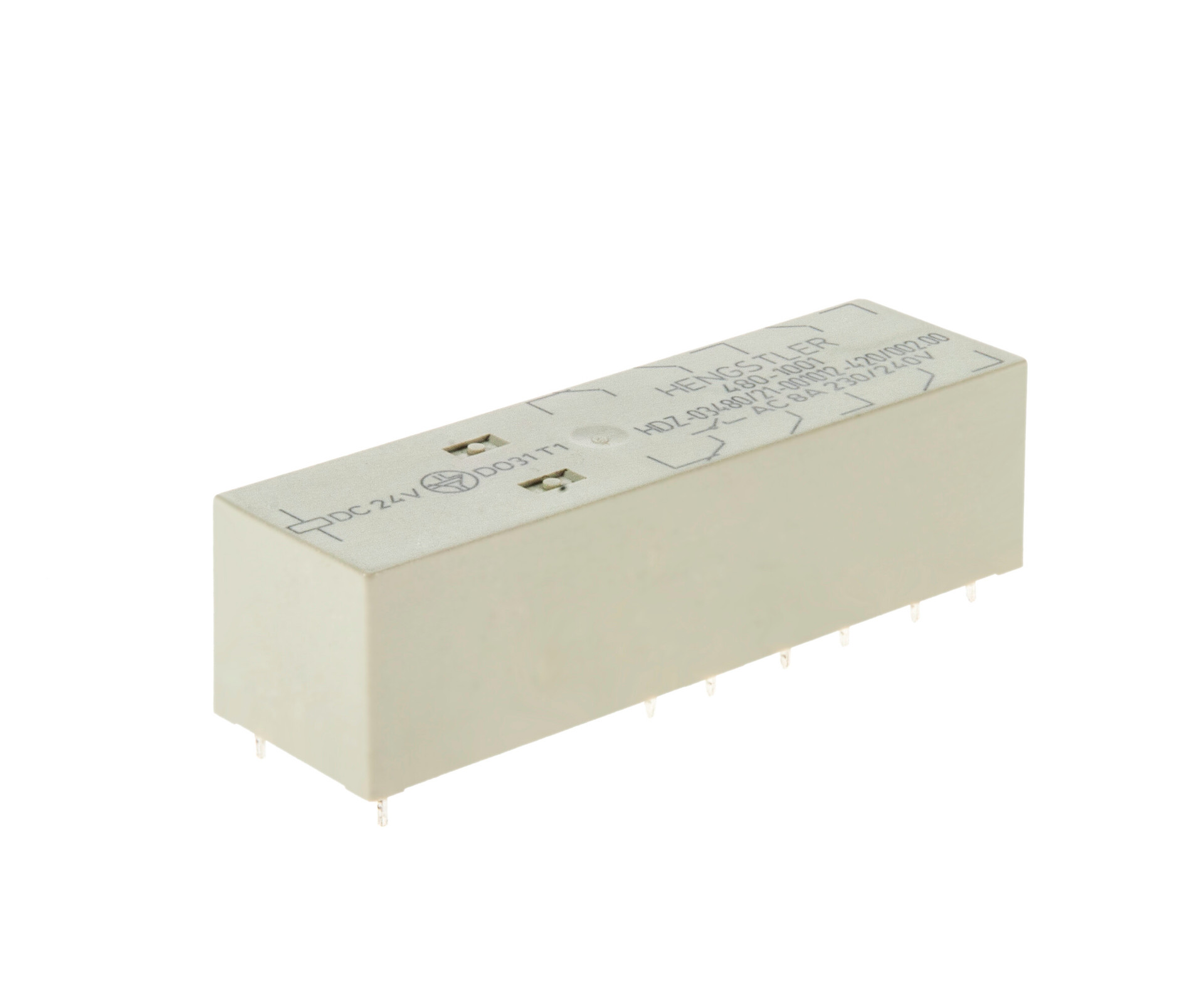

Note: The image shown represents the product series. The actual part number may differ in appearance depending on the selected configuration.

HDZ-03480/22-001080-420/004.00 Safety Relays

Availability:Quote Only
Lead time:20 Days

Match Code:HDZ-03480/22-001080-420/004.00
Item Number:480-1018

6 contacts
Max. 8 A switching & permanent current
Drive is DC (monostable-neutral)
Ambient temperature -25 to +75 °C
With forcibly guided contacts to DIN EN 61810-3, application type A
cULus and TÜV approval

Request a Quote

480-1018 | HDZ-03480/22-001080-420/004.00 | H-480 Series Safety Relays
