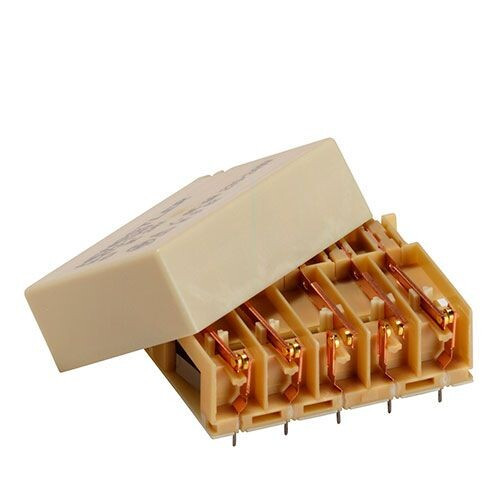

Note: The image shown represents the product series. The actual part number may differ in appearance depending on the selected configuration.

HDZ-43473/11-001089-320/005.00 Safety Relays

Availability:Obsolete
Lead time:1 Days
This product is obsolete. For replacement options or other alternatives please contact our technical support:

Match Code:HDZ-43473/11-001089-320/005.00
Item Number:473-1098

5 contacts
Max. 6 A switching & permanent current
Drive is DC (monostable-polarized)
Ambient temperature -25 to +75 °C
With forcibly guided contacts to DIN EN 61810-3, application type A
Meets requirements for signal relays under UIC 736e
cULus and TÜV approval

473-1098 | HDZ-43473/11-001089-320/005.00 | H-473 Series Safety Relays
