Encoder Output

OUTPUT - RS 422 - TTL

OUTPUT CIRCUIT

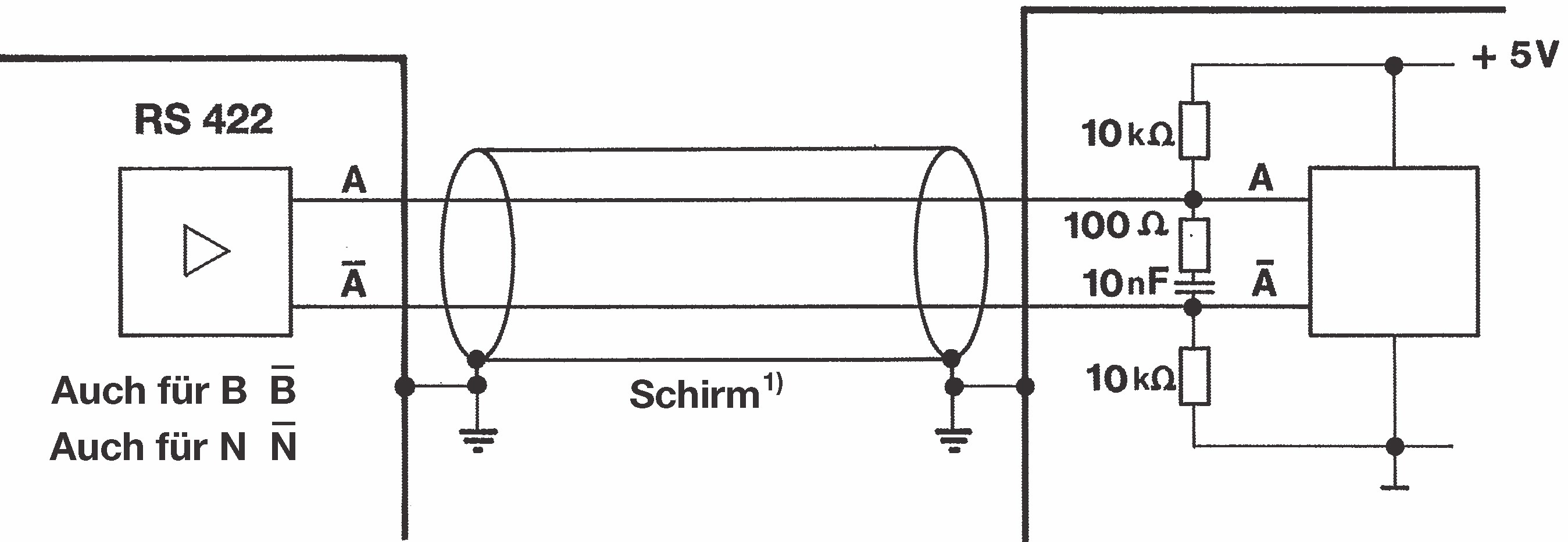

Illustration of a Typical Communication Interface Circuit

¹Cable Shield:

for RI 30, 36, 58, 59, 76 and RX 70 connected to housing on encoder side

TECHNICAL DATA

code letter	R = RS 422 + alarm3(with UB = DC 5 / 10 - 30 V)T = RS 422 + Sense4(only with UB= DC 5 V)
Output signalsclockwise rotation (cw)when looking at the shaft	rectangle pulse sequences(TTL) for channels A, B, Nand their invertedSignals , A , B N
switching timeswith 1,5 m cable	≤100 ns ≤100 ns
Pulse shape
duty cycle	1:1
Tolerance¹	±25° electrical
Pulse frequency max.	300 kHz
Output voltage	DC 0 - +5 V ²
Output level	H ≥ DC 2.5 V / L ≤ DC 0.5 V (TTL level)
Output load max.	±30 mA
short-circuit resistance	for UB= DC 5 V: only 1 channel for max. 1 s(standard RS 422 driver)with UB= DC 10 - 30 V: all channels fully short-circuit proofthrough integrated regulation
reverse polarity protection from UB	for UB= DC 5 V: nowith UB= DC 10 - 30 V: yes

¹distance A to B at least 0.45 μs (at 300 kHz)

²also at UB= DC 10 - 30 V

³description see outputs - Alarm

⁴description see outputs - Sense

CABLE LENGTH

¹related to the original Hengstler cable
